Selected Equipment

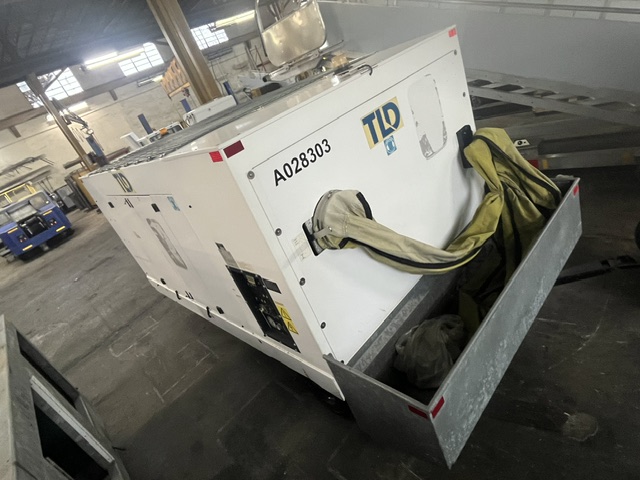

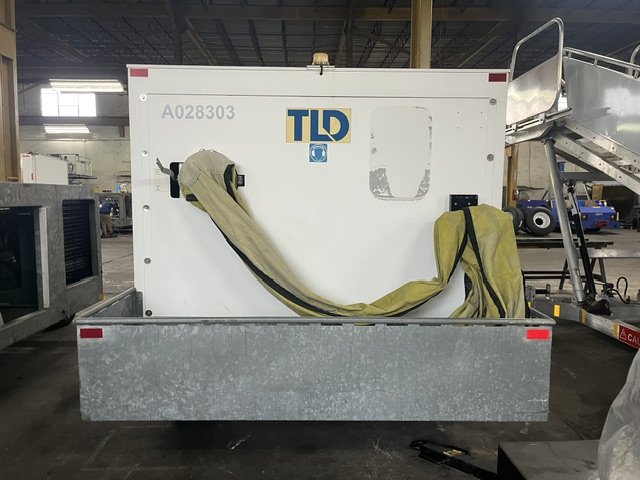

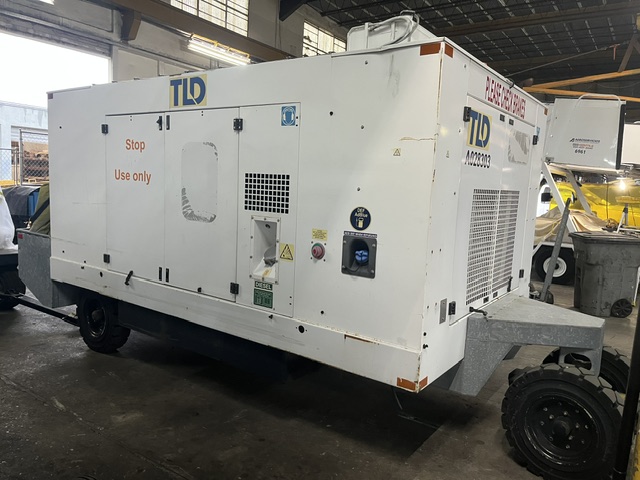

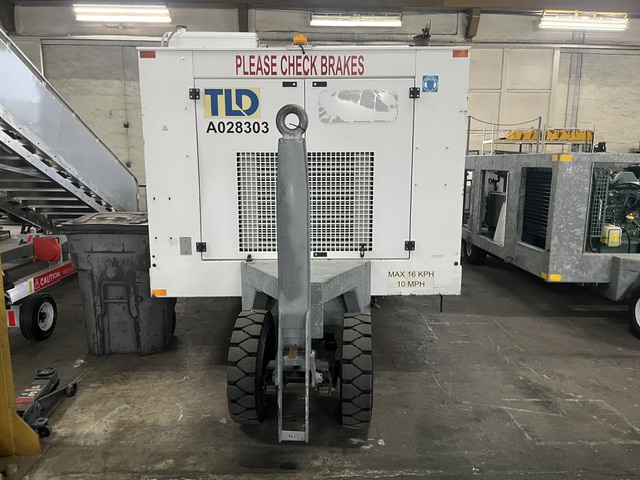

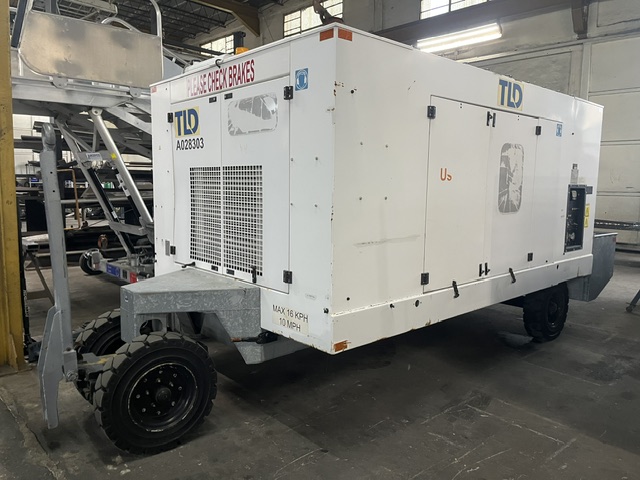

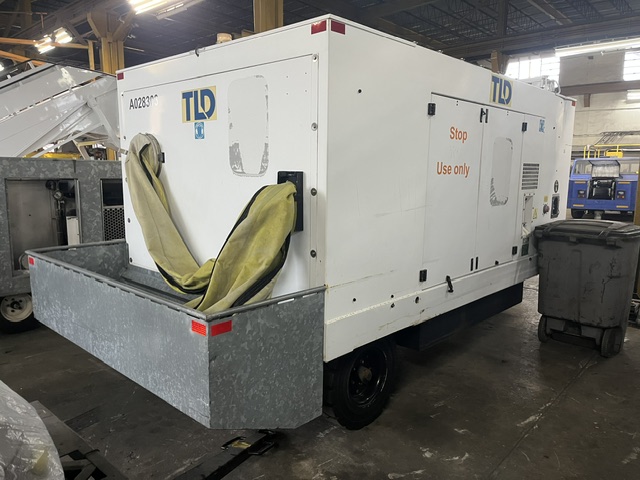

The ACU-804 Series is a line of self-contained, fully portable air conditioning units suitable for single connection aircraft throughout the world. The ACU-804 has sufficient capacity to achieve and maintain comfortable cabin temperatures on any narrow or medium bodied aircraft in any climate.

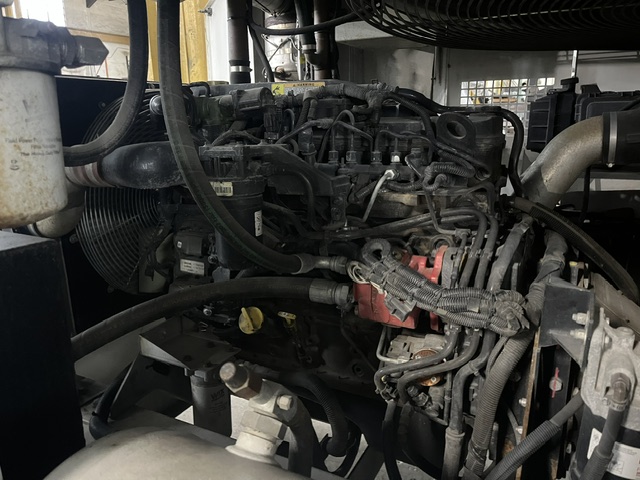

The simple but rugged design consists of a diesel engine directly driving the refrigeration compressor and blower. This is the unique “TLD Direct Drive” technology. A hydraulically driven condenser fan exhausts waste heat directly upward making it immune to performance fluctuations due to varying wind conditions and minimizing heat and noise radiated to the immediate ramp area.
Technical Specifications:
• Automatic Capacity Control
• Adjustable Outlet Damper
• High Capacity Centrifugal Blower
• Rotary screw compressor
• Corrosion resistant coil enclosure
• R134A refrigerant
• 100 gallons fuel tank
• Hose storage and coupler mount
• TLD standard paint - TLD White & Grey Panels
• 24 VDC electrical circuit
• LINK for data monitoring
